RS-485 communication module DS-MPE-SER4MRS-232
Add to favorites
Compare this product
Characteristics
- Bus
- RS-485, RS-232
Description

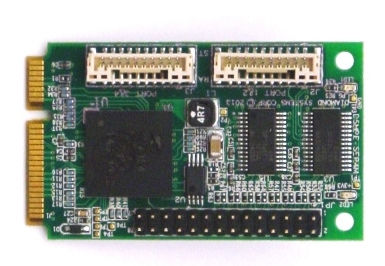

The DS-MPE-SER4M is a rugged, low cost 4-port high speed PCIe MiniCard module that is ideal for serial I/O expansion in embedded and OEM applications.
It offers four RS-232/422/485 serial ports in the PCIe MiniCard full size form factor with an extended operating temperature of -40°C to +85°C. Data rates on every port are up to 1Mbps in RS-232 mode, and 10Mbps in RS-422 and RS-485 modes. The board's protocols can be set by jumpers or programmatically selected with GPIO lines built into the UART and controlled via software. The serial I/O signals are provided on two miniature connectors with two ports per connector.
Catalogs
Diamond's Embedded
32 Pages
ProdBro-IO
8 Pages
