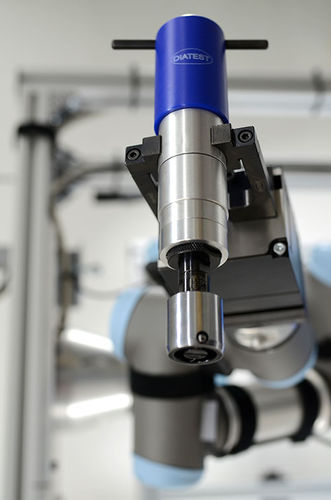

Diameter measuring system

gaugeautomaticrobotic

Measurement of bores and chamfers in the DIATEST measuring cell Fast – safe - complete Robot-based 100 % measuring of bores, chamfers and plain depths. Measurements can either be integrated into production process or carried out separately. The extremely fast measuring cycle measures twenty-four-seven and provides 100 % measured values. Different measuring tasks: • Autonomous measuring of bores, chamfers and plain depths with just one single measuring cell Reliable data connection and back-up: • Any time precise and complete measured data by means of automatic wireless transfer Big Data: • Improvement of manufacturing processes by automated or manual data evaluation Controlling of 2 worlds: • The DIA-Gauge Software controls all measuring processes and robots Many measuring processes: • Standardized and storable measuring processes for different applications Further benefits: • Automatic storage system for measuring instruments • Calibration bar for automatic calibration • Easy changeover • Scalability • Quick integration into processes • The fast measuring cycle saves valuable time in a process • Safety through 100 % measurement of all attributes • Establishment of a DIAWIRELESS real radio network: Comprehensive data evaluation by transfer of 100 % measured values • 100 % measured values ensure best production control
