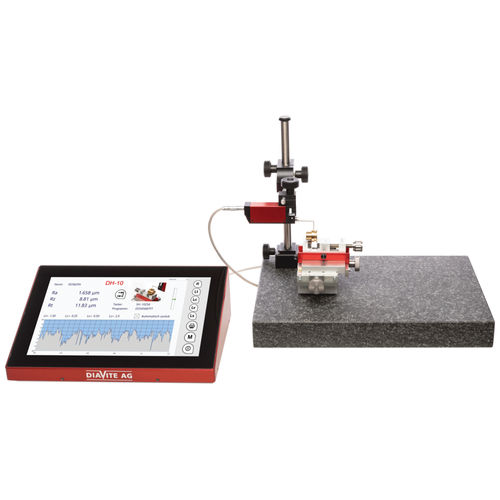

Roughness measuring instrument DH-10 TOUCH

contactwith displayhigh-precision

DIAVITE DH-10 TOUCH One instrument for tracers without and with skid With the DIAVITE DH-10 TOUCH you can work with tracers without and with skid. The entire DIAVITE tracer range is available to you with just one device! On the 10.1“ Full HD Touch Display you will find all controls for a quick and easy measurement. You define the measurement (measuring length, filter, speed, etc.) and save it with an image and corresponding protocol. Via the menu or a barcode scanner you select the program and execute it. The protocol is then printed via LAN (WLAN/ Bluetooth) or stored on the server, USB stick on the previously defined path. You have the choice whether to save in PDF, CSV or TXT format. A statistical evaluation of several measurements can also be recorded. ROUGHNESS MEASUREMENT - High-precision roughness measurement instrument for universal use in workshops and measuring rooms - Automatic calibration - Measuring sections all adjustable 0.5 to 15.0 mm - Adjustable measurement speed - Calibration of up to 8 tracers - Saving measurement conditions with image - Many tracers for almost all measuring tasks, including customer specific solutions - Simple, multilingual menu guidance - Tolerance display for exceeded measurement values - Accessories for many applications, crucial when working with tracers without skid TECHNICAL DATA - DIAVITE DH-10-TOUCH Parameters roughness - ISO/DIN: Ra, Rz (DIN), Rmax, R3z, Rt, Rq (RMS), Rk, Rp, Rv, Rpk, Rvk, MR1, MR2, RPc, C1, C2, contact ratio Rmr, C0, Cz, V0, Rdg, RL0 JIS: Ra (JIS), Rz (JIS) ISO 12085: R, AR, Rx Parameters profile - ISO/DIN: Pa, Pz, Pt, Pq, Pmr, PPc, Pmax Measurement ranges - Ra, Rq: 0 – 20.00 μm | 0 – 800 μin
