Platform weighing scale 4PBPH
with separate indicatorIP66

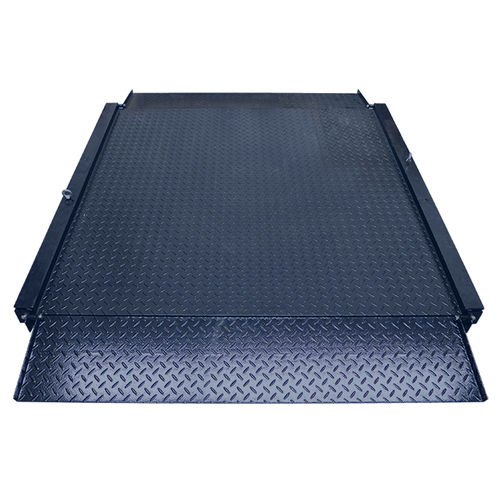

Platform weighing scale - 4PBPH - DIBAL, S.A. - with separate indicator / IP66
Platform weighing scale - 4PBPH - DIBAL, S.A. - with separate indicator / IP66
Platform weighing scale - 4PBPH - DIBAL, S.A. - with separate indicator / IP66 - image - 2
Add to favorites
Compare this product


Characteristics

Type
platform
Display
with separate indicator
Protection level
IP66
Weight range

Max.: 1,500 kg
(3,306.9 lb)

Min.: 600 kg
(1,322.8 lb)

Description

Dibal 4PBPH 4 load cells weighing platforms, for floor installation with low profile, include 2 access ramps. The 5 mm thick embossed sheet plate makes them ideal for intensive work in long range weighing tasks. These platforms can be connected to Dibal or Cely weight indicators, Dibal manual labellers, or Cely piece counting PC-60 scales. MAIN CHARACTERISTICS Top-of-floor low profile weighing platform. 4 load cells. Valid for legal metrology. CONSTRUCTION Structure: Painted steel (RAL 5004). Plate: 5 mm thick embossed sheet. 4 nickel steel load cells (IP67). ABS junction box (IP66). 5 m cable to connect the load cells to a weight indicator. 2 access ramps included. Height adjustable feet.
