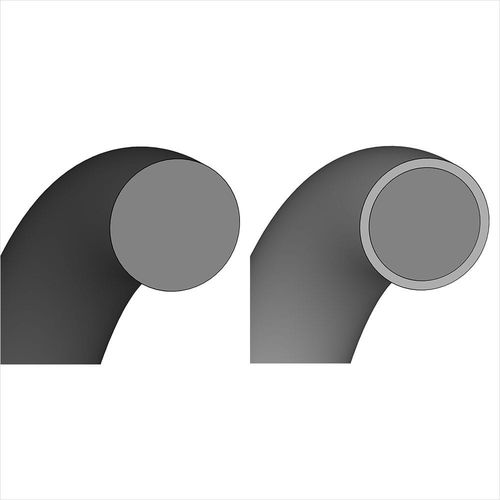

O-ring seal

circularelastomerindustrial

O-rings are primarily manufactured from elastomer materials. The O-ring achieves its sealing effect by deformation of the cross-section after installation and compression in the installation space. O-rings are mainly used for static sealing of gaseous and liquid media. Under certain conditions, the dynamic use of an O-ring is also possible. O-rings of the product brand Dichtomatik are manufactured according to DIN ISO 3601-1, industry class B and the surface deviations according to DIN ISO 3601-3, special characteristic N. For special applications, the permissible tolerances for special articles can be restricted to industry class A and the form and surface deviations to grade characteristic S. Benefits at a Glance Numerous standard dimensions available from stock Special elastomer materials also available in different Shore hardnesses and colors upon request Special e. g. metal detectable, encapsulated O-rings Segment-specific-certified materials available Product modification possible Universally applicable Good lifetime Very good price-performance ratio Suitable for many industrial applications Choose the Right Product Out of Several Types of Gasket Materials A particularly very good material regarding application temperature and media resistance is FFKM of the Dichtomatik brand.
