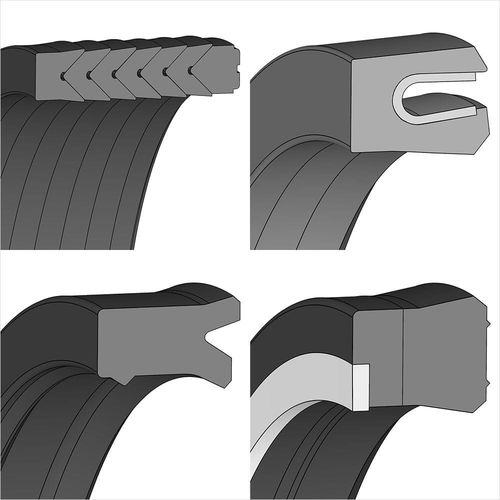

O-ring seal N21

liproundU-shaped

Dynamic and Static Sealing of the Piston Rod Towards the Cylinder Rod seals are used for sealing of retracting and extending cylinder rods. This prevents the pressurized process media from escaping from the cylinder. In addition, the cylinder is reliably protected against dirt, dust or any fluids. Due to the wide range of requirements in hydraulic applications, such as pressure, pressure peaks, sliding speeds, temperatures, and process media, choosing the right rod seal is very important. The Dichtomatik product brand portfolio offers a wide range of elastomer and thermoplastic rod seals, such as the N, S, SNI, SDS, SPOR series. Typical applications for Dichtomatik rod seals are hydraulic cylinders in mobile hydraulics, agricultural machinery, construction machinery and presses. Benefits at a Glance Broad product and material portfolio Temperature and media resistant Very good wear characteristics, reduced friction and therefore good lifetime No stick-slip-effect Symmetrical and asymmetrical profiles Special designs for high loads Very good price-performance ratio Suitable for many industrial applications Choose the Right Product Out of Four Types N series: Symmetrical U-ring which can be used as piston or rod seal SNI series: Asymmetrical U-ring with inner dynamic sealing lip SPOR series: Combination of a PTFE-bronze sealing element and an O-ring (NBR) as pre-tensioning element S72: Wear and extrusion resistant TPU sealing element with a POM back-up ring
