Hydraulic hose ML7010 seriesNBRfabric-braidedspiral wire
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- NBR
- Other characteristics
- abrasion-resistant, oil-resistant, weather-resistant, fabric-braided, spiral wire
- Inner diameter
Min.: 19 mm
(0.748 in)Max.: 63.5 mm
(2.5 in)- Outer diameter
Min.: 32 mm
(1.26 in)Max.: 77 mm
(3.031 in)- Pressure
Min.: 4 bar
(58.015 psi)Max.: 21 bar
(304.579 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description

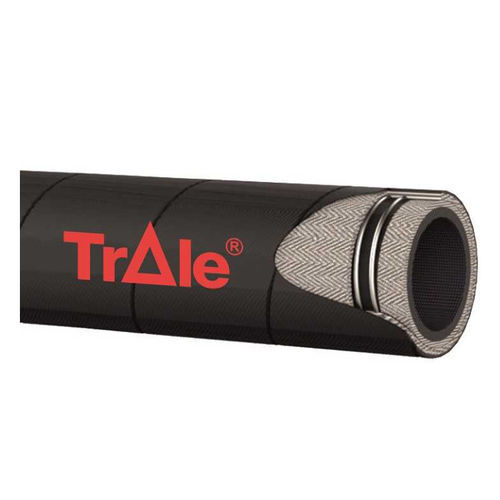

The inner tube of fabric-braided rubber hydraulic hose is made of special NBR rubber, which makes it resistant to hydraulic oil. There are two textile braids on the tube and with one steel wire helix. The black rubber cover of the tube is oil, abrasion and weather resistant. The working temperature is between 40º C and +100º C.
