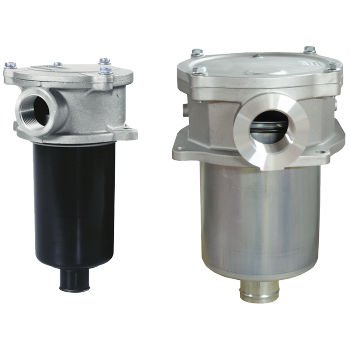

Oil filter FR1 serieshydraulicbasketpressure
Add to favorites
Compare this product
Characteristics
- Designed for
- hydraulic, oil
- Filtration element
- basket
- Filtration method
- pressure
- Material
- steel, aluminum, nylon
- Other characteristics
- return-line
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 8 bar
(116.03 psi)- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 600 l/min
(158.503 us gal/min)- Fluid temperature
Min.: -25 °C
(-13 °F)Max.: 100 °C
(212 °F)
Description
The FR1 series of hydarulic oil filters operate in a maximum working pressure of up to 8 bar. These oil filters can operate in ambient temperatures of -25°C to +100°C. All parts are made out of aluminum but the bowl is made out of nylon or steel and the seal is fabricated from Buna-N and Viton.
