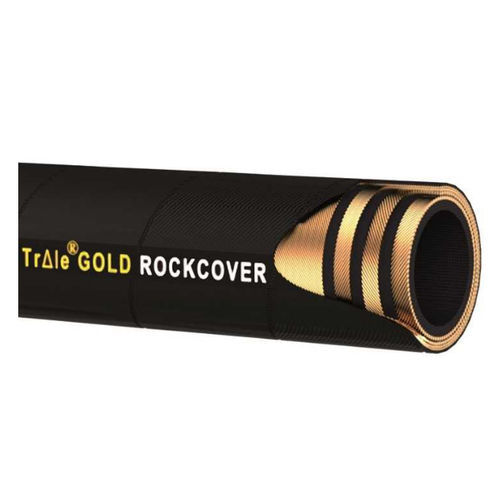

Hydraulic hose ML4569 seriessynthetic rubbersteel-braidedspiral
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- synthetic rubber
- Other characteristics
- abrasion-resistant, oil-resistant, weather-resistant, spiral, steel-braided
- Inner diameter
19 mm, 25.4 mm, 32 mm, 38 mm, 50.8 mm
(0.748 in, 1 in, 1.26 in, 1.496 in, 2 in)- Outer diameter
32.2 mm, 38.7 mm, 45.5 mm, 53.5 mm, 68.1 mm
(1.268 in, 1.524 in, 1.791 in, 2.106 in, 2.681 in)- Pressure
250 bar, 290 bar, 380 bar, 420 bar
(3,625.943 psi, 4,206.094 psi, 5,511.434 psi, 6,091.585 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Composition: ·Inner tube: special synthetic rubber resistant to mineral, vegetable and hydraulic oil.
·Reinforcement: four braids of steel wire.
·Cover: synthetic rubber, resistant to oil, abrasion and weather.
Working temperature: From -40º C to +100º C.
