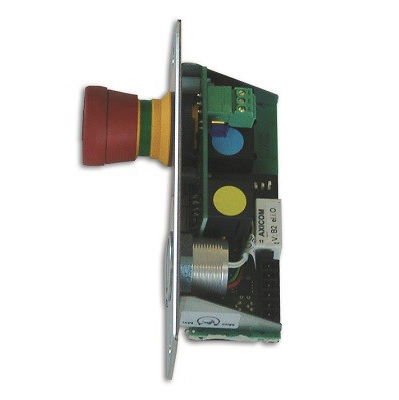

Surface control system ST3

doorswitch

for the Peripheral Interlock Control System The control terminal is the central component of the peripheral DICTATOR interlock control system as it contains the control circuit board where the relations between the different doors are set. It is available as a Basic and a Plus version and as RFID terminal for transponder chip, all versions with or without the emergency-open switch. The DICTATOR terminals meet the requirements of clean rooms. As operating button a piezo-type key is used that reacts on very little pressure. Both front plate and key are made of stainless steel. The front plates of the terminals have been designed for their mounting in hollow profiles. On demand, front plates with differing measurements and with the customer’s logo are available. For an easy mounting of the terminals we provide mounting boxes for surface and flush mounting. Performance Basic version (with piezo-type key or RFID system) 1 signal output for actuating the emergency-open switch (if included) 1 signal output (to be configured by a jumper) Plus version (only with piezo-type key) 1 signal output for actuating the emergency-open switch (if included) 2 signal outputs (to be configured by jumpers) Integrated time control unit without display (adjustable times: 5, 10, 15, 20, 30, 45, 60, 120, 180, 240, 300, 360, 420, 540, 660 seconds. Different times on demand)
