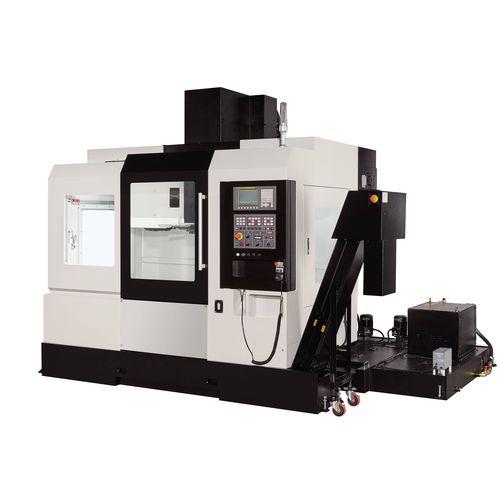

3-axis CNC machining center M800verticalfor aluminumfor steel
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum, for steel, for stainless steel
- Spindle mount
- BT 40, CAT40
- Number of tool stations
- 24 tools
- Associated functions
- tapping
- Applications
- for the automobile industry, for large workpieces, for the mold industry, for molds, for small parts production, for small workpieces, for turbine blades
- Other characteristics
- compact, HSC, for high-precision cutting
- X travel
800 mm
(31.5 in)- Y travel
500 mm
(19.69 in)- Z travel
500 mm
(19.69 in)- Rotational speed
10,000 rpm, 12,000 rpm, 15,000 rpm
(62,832 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1)- Power
7.5 kW, 11 kW
(10.2 hp, 14.96 hp)- Work feed X-axis
30,000 mm/min
(20 in/s)- Work feed Y-axis
30,000 mm/min
(20 in/s)- Table load capacity
450 kg
(992 lb)- Tool weight (max)
7 kg
(15.4 lb)- Positioning accuracy
0.01 mm
(0.00039 in)- Repeatability
0.01 mm
(0.00039 in)- Tool-changing time
1.6 s, 1.9 s
- Weight
5,750 kg
(12,676.58 lb)- Overall length
3,950 mm
(155.5 in)- Overall width
2,300 mm
(90.6 in)- Overall height
2,950 mm
(116.1 in)
Description
MICROCUT linear way VMC is designed and built to meet the ever-increasing demands for powerful and reliable machines with high efficiency, high accuracy machining performance.
MICROCUT M series uses roller type linear guideways, a high-precision main spindle with thermal expansion stability and a robust and compact structure design with high durability. Depending on machining needs, various travel lengths with great capacity satisfy all demands.
