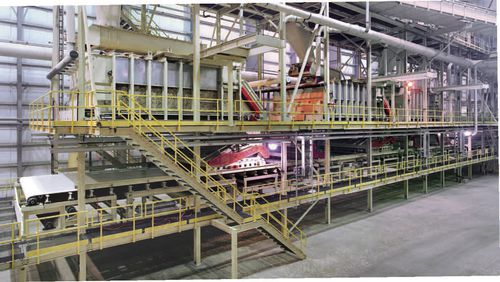

Forming line OSB

OSB Forming Station forms glued strands to an equal and calibrated multilayer mat. The mat is formed of two symmetrical surface layers with length-oriented strands, optional intermediate layers and a core layer of various finer strands with cross orientation. However, OSL Forming Station orients both surface layer and core layer strands lengthwise. Application Mat laying for OSB / OSL board pressing Customer benefits High board quality due to superb strand orientation Very low area weight deviation, both lengthwise and crosswise, due to individual weight control of each layer Optimized weight control loops for fast production starts and changes Excellent strand orientation, both lengthwise and crosswise, due to automatic height control of the spreading heads Modular types of spreading heads for all kinds of material (length 40 to 250 mm) Technical features Variable ratio between surface and core layer material Unseparated or separated core layer former Cross belt to separate and reject glue lumps in surface layer Individual weight control of each layer with mat scales integrated into either the bin or the forming line Separate automatic height adjustment of each forming head Best forming accuracy crosswise with optional Formator
