Water cleaning system

environmentally friendly

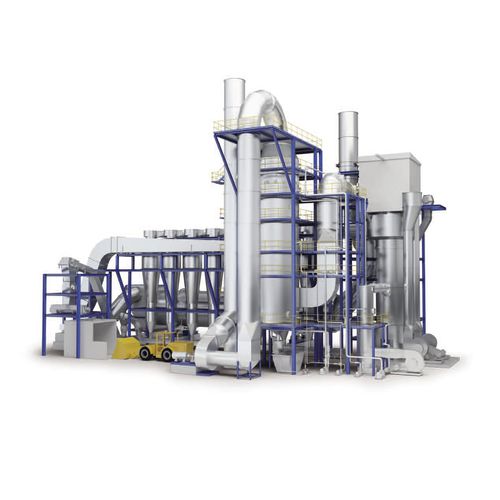

The Dryer Emission Control System cleans exhaust gases by using a scrubber. Water droplets accrued in a venturi throat trap fine particulates. These solid and liquid parts are separated in the subsequent cyclone. Additional equipment can be supplied to catch water soluble VOCs (volatile organic compounds), in particular formaldehyde. Application MDF/HDF panel industry Particleboard industry OSB industry Pellet industry Customer benefits Immune to fluctuating quantity of gases at constant separation efficiency High solid content in sludge discharge Low space requirement Adjustable emission control into submicron range Reduction of VOCs and formaldehyde with built-in equipment Technical features High-efficiency separator means low water consumption Liquid distribution in venturi head via open pipes rather than nozzles, thus no clogging Recirculation of scrubbing liquid with high solid content Variable amounts of gas can be processed Adjustable emission control via steplessly variable venturi throat
