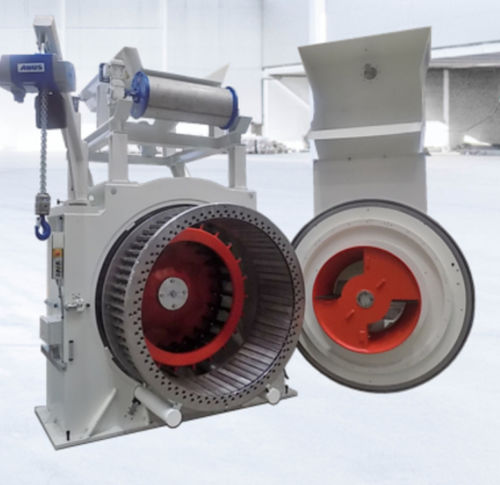

Strand flaker MSF-PB

The MSF-PB Strand Flaker is used in the particleboard manufacturing for the production of opti-mized core layer flakes. These flakes enable the production of boards with improved mechanical properties or reduced density. After passing the VC Vibration Conveyor, the permanent magnet drum and the HPS Heavy Particle Separator, the macro-chips are distributed in three dimensions (3D) across all areas of the flaking chamber by the unique FlowOptimizer. Finally, the specially designed rotor guides the macro-chips to the knives of the adapted static knife ring, where they are reliably cut into the required slender flakes. Application Particleboards Customer benefits High-quality particleboards with improved mechanical properties or reduced density Optimal homogenous use of the complete knife ring width and circumference due to unique FlowOptimizer Reduction of production costs Reliable production of optimized core layer flakes Essential parts of the machine wear-protected and easy exchangeable; high machine availability Technical features Special rotor and knife ring design for receipt of required slender flakes Unique FlowOptimizer technology for improved 3D material distribution Adjustable flake thickness Optimized cutting conditions due to narrow gap between static knife ring and rotor with precise bearing system, operating on one-shaft principle Casing geometry adapted for required application
