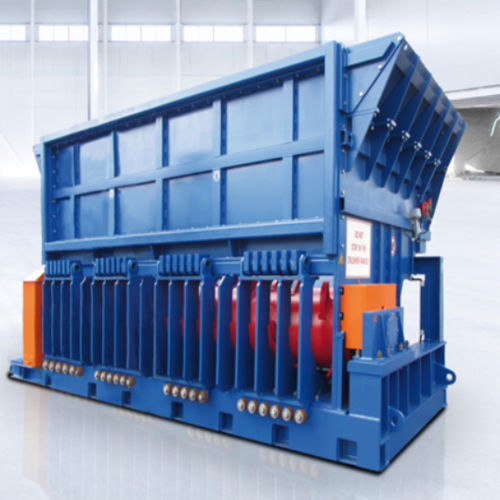

Toothed roller crusher MGB

stationary

The MAIER MGB Big Crusher is the ideal solution for the reduction of large-volume and bulky wooden material or other brittle residues. Material is directly fed through the large infeed hopper, crushed between a slow rotating, large, toothed roller and aggressive crushing bars at the bottom of the crushing chamber. Application Panel boards (PB, MDF, OSB) Recycling Biomass and renewable fuels Combustion (energy from waste) Customer benefits Wide range of input material, from waste wood, railway ties, pallets and furniture to root stumps and electronic waste Insensitive against impurities and contaminations Easy overfloor installation Output material: 100 – 500 mm, adjustable Robust, long-term reliable, low energy consumption and operating costs Technical features Large-volumed infeed hopper; available with hydraulically swiveling side wall Wear-protected crushing teeth at the crusher roller, individually shaped, can be re-armored when worn Discharge grate, segmented, in manually movable or hydraulically supported execution Single-shaft-principle; power transmission to the crusher roller by electro-mechanical power train with hydro clutch Easily exchangeable crushing bars with aggressive edges
