Rotary piston flow meter ALTAIR MCI 119
volumefor waterin-line

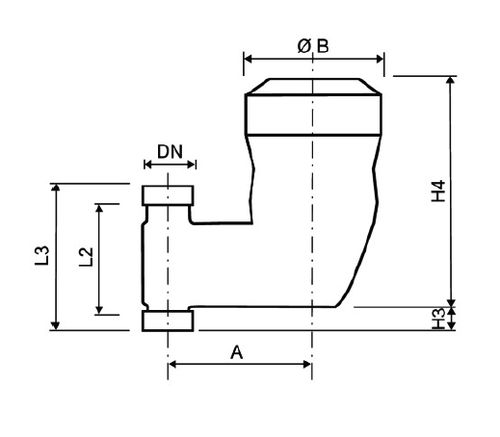

Rotary piston flow meter - ALTAIR MCI 119 - DIEHL Metering - volume / for water / in-line

Rotary piston flow meter - ALTAIR MCI 119 - DIEHL Metering - volume / for water / in-line - image - 2

Rotary piston flow meter - ALTAIR MCI 119 - DIEHL Metering - volume / for water / in-line - image - 3

Rotary piston flow meter - ALTAIR MCI 119 - DIEHL Metering - volume / for water / in-line - image - 4

Add to favorites

Compare this product

Characteristics

Technology

rotary piston

Type

volume

Fluid

for water

Installation

in-line

Volumetric flow rate

Max.: 5 m³/h
(176.5733 ft³/h)

Min.: 4 m³/h
(141.2587 ft³/h)

Process temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Process pressure

16 bar
(232.06 psi)

Description

Application: Domestic rotary piston water meter with measuring capsule Features: Low noise level System compatibility, with standard pulse output 1 l/pulse. ALTAIR MCI can be extended - with IZAR RADIO (radio module) or IZAR PULSE (pulse transmitter) Only the complete capsule needs to be replaced on expiry of the calibration period - the connection interface remains fitted in the pipeline Any mounting position + no calming sections necessary Low starting flow approximately 2 l/h permits recording of very small amounts of water Less exchange time as capsule and screw head is one part Self-cleaning mechanism of measuring chamber Encapsulated roller counter unit rotatable by 350°
