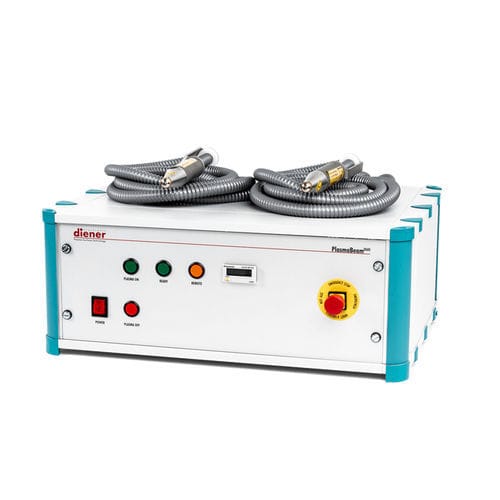

Cleaning atmospheric plasma generator PlasmaBeam Duo

for surface coating

The PlasmaBeam Duo, the further development of an atmospheric plasma processor for surface cleaning and activation, is used in the following sectors: Plastics technology Automotive Electrical engineering Elastomer technology Precision engineering Small batch production Micro-system technology Medical engineering Solar cell technology Research and development Semiconductor technology Optics Supply unit Supply unit (table-top housing) W 562 mm, H 211 mm, D 420 mm, weight: approx. 20 kg Plasma generator 2 plasma generators; max. ∅ 32 mm, L 210 mm, weight: approx. 0.5 kg Cable length: 3 m, treatment width: max. 10 mm/nozzle Generator Frequency: 20 kHz, power: 300 W/nozzle, other generator versions available on request Connections Process and cooling gas: dry and oil-free compressed air, input pressure: 5 - 8 bar, gas consumption: approx. 4 m3/h, voltage supply: 230 V, 50/60 Hz Operation and controls Manual control: Via the button at the front panel of the unit Semi-automatic control: Remote control + via remote connection at the rear panel of the unit Additional options Special cable length with free-standing high-voltage transformer Spare parts kit Higher power of generator Compressed air filter with microfilter Test inks Plasma polymerisation accessories (development kit) Maintenance contract 3- or 4-axle robot with housing (300 x 300 mm or 500 x 500 mm working area) Automation tailored to customer requirements Further options available on request
