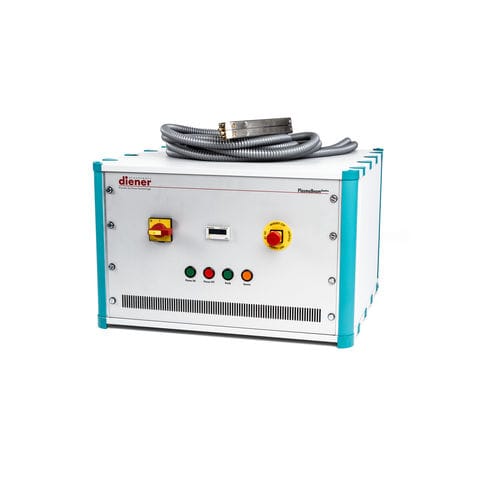

Plasma surface treatment machine PlasmaBeam QUATTRO

PC-controllableautomaticlaboratory

Plasma systems from Diener electronic have long since established themselves in a wide variety of industrial sectors. With the PlasmaBeam QUATTRO atmospheric pressure plasma system, you can rely on modern and future-proof plasma jet technology under atmospheric pressure. Due to the treatment width of 32 mm, substrates can be precisely treated locally. PlasmaBeam technology can be used for inline processes. With the help of robots, 2 or 3-dimensional surfaces can be treated. PlasmaBeam enables local surface cleaning without masking the rest of the surface. For example, cleaning of Al, Au and Cu bond pads before wire bonding without touching the rest of the surface. The active gas jet coming out of the plasma nozzle is always free of dangerous voltage potential. This allows the unit to be used for the various processes in the electronics industry. Furthermore, the PlasmaBeam QUATTRO is suitable as a pre-treatment device for the following processes: Gluing, bonding, printing, laminating, soldering, welding, flocking. The following surfaces can be treated with PlasmaBeam: Plastics, rubber, metal, glass, ceramics, hybrid materials. Main features: Desktop enclosure Plasma generator Treatment width 32 mm Generator Frequency approx. 20 kHz Power approx. 4 x 300 W Process and cooling gas: Dry, oil-free compressed air; inlet pressure 5 - 8 bar; gas consumption approx. 8 m³ / h Power supply 230 V, 50 / 60 Hz Control: Manual - via button on the front panel of the unit; Semi-automatic - remote control via remote
