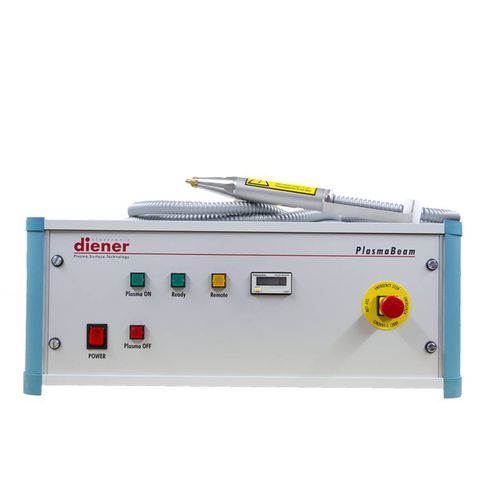

Cleaning atmospheric plasma generator PlasmaBeam Standard

for surface coating

The PlasmaBeam - atmospheric plasma processor for surface cleaning and activation is primarily used in the following sectors. Plastics Automotive Electronics Elastomer technology Precision technology Small batch production Micro-system technology Medical technology Solar technology Research and development Semiconductor technology Optics Supply unit (Table-top housing) W 562 mm, H 211 mm, D 420 mm, weight: approx. 20 kg (19” housing) W 420 mm, H 140 mm, D 580 mm, weight: approx. 20 kg Plasma generator max. ∅ 32 mm, L 270 mm, weight: approx. 0.6 kg, cable length: 3 m (special lengths on request), treatment width: max. 12 mm Generator Frequency: 20 kHz, power: 300 W, other generator versions available on request Connections Process and cooling gas: dry, oil-free compressed air, input pressure: 5.5 - 8 bar, gas consumption: approx. 2 m3/h, voltage supply: 230 V / 6 A Additional options Spécial cable length with free-standing high-voltage transformer Spare parts kit Higher power of generator Compressed air filter with micro-filter Test inks Plasma polymérisation accessories (development kit) Maintenance contract 3- or 4-axis robot with housing (300 x 300 mm or 500 x 500 mm working area) Customised automation
