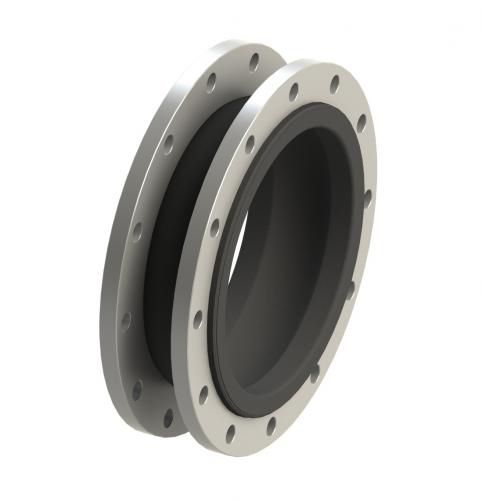

Rubber pipe expansion joint A1
roundscrew-infor pipes

rubber pipe expansion joint
rubber pipe expansion joint
rubber pipe expansion joint
rubber pipe expansion joint
rubber pipe expansion joint
rubber pipe expansion joint
rubber pipe expansion joint
rubber pipe expansion joint
Add to favorites
Compare this product


Characteristics

Material
rubber
Configuration
round
Installation system
screw-in
Applications
for pipes, universal, for air conditioning, for vacuum
Other characteristics
custom
Nominal diameter

Max.: 2,000 mm
(78.74 in)

Min.: 20 mm
(0.79 in)

Pressure

16 bar
(232.1 psi)

Description

Standard model single-arch rubber expansion joint composed of single- or multi-layer rubber bellow, for mounting with swivel flanges directly on the pipeline. Available in various rubber qualities depeding on the flow media, custom install lengths and different standards and meterials for the flanges. Optional support ring for vacuum applications is available on request. For detailed technical specifications on Type A1 rubber expansion joints please check the following table and documents or contact us. Features high flexiblility, universal movements simple installation with flanges various rubber qualities suitable for vacuum applications
