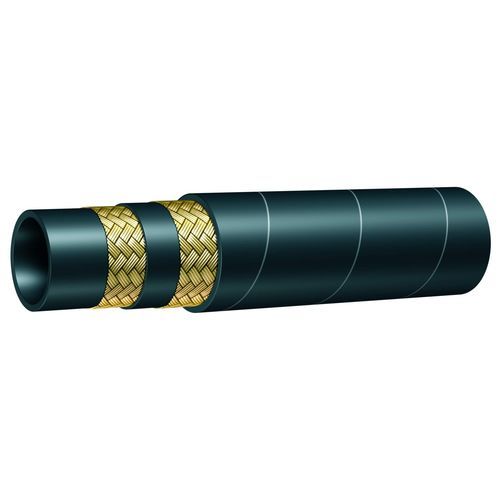

Hydraulic hose 2SN-Ksteelsynthetic rubberhigh-temperature
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- synthetic rubber, steel
- Applications
- high-temperature
- Norms
- DIN
- Other characteristics
- abrasion-resistant, oil-resistant, standard
- Inner diameter
Max.: 26 mm
(1.024 in)Min.: 6.6 mm
(0.26 in)- Outer diameter
Max.: 35.6 mm
(1.402 in)Min.: 13.4 mm
(0.528 in)- Pressure
Max.: 450 bar
(6,526.698 psi)Min.: 200 bar
(2,900.755 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Tube - oil resitsant synthetic rubber
Reinforcement - 2 high tensile steel wire netting
Cover - synthetic rubber with high temperature, ozone and abrasion resistance
Standard - is not a subject of any standard, the values from comparable standard of DIN EN 857-2 SC are exceeding
Highly abrasion-resistant cover: -
- delivery is possible with highly abrasion-resistant cover
- test accoridng to EN ISO 6945 after 1 million cycles: no measurable abrasion
your advantage: -
- no hose protection necessary
- hose can be used for application under oil
Do you have need for hose lines with highly abrasion-resistant
cover? We are looking forward to your inquiry.
Catalogs
2SN-K
2 Pages
