Hydraulic hose R15steelsynthetic rubberhigh-temperature
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- synthetic rubber, steel
- Applications
- high-temperature
- Norms
- DIN
- Other characteristics
- abrasion-resistant, oil-resistant, standard
- Inner diameter
Min.: 19 mm
(0.748 in)Max.: 38.1 mm
(1.5 in)- Outer diameter
Min.: 32 mm
(1.26 in)Max.: 57.3 mm
(2.256 in)- Pressure
420 bar
(6,091.585 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 120 °C
(248 °F)

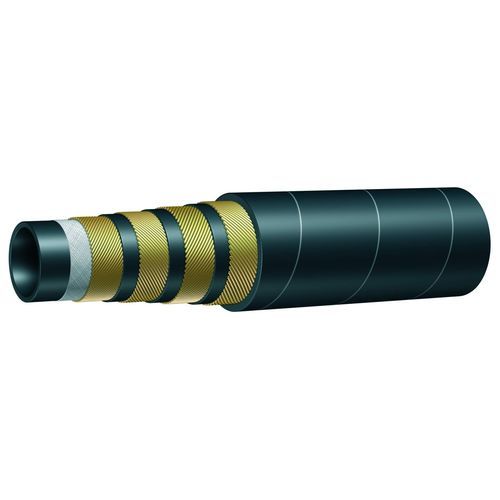

Description
Tube - oil resistant syntetic rubber
Reinforcement - 4 high tensile steel spirals up to DN 32, DN 40 with 6 spirals
Covering - synthetic rubber with high temperature, ozone and abrasion resistance
Standard - SAE 100 R15
