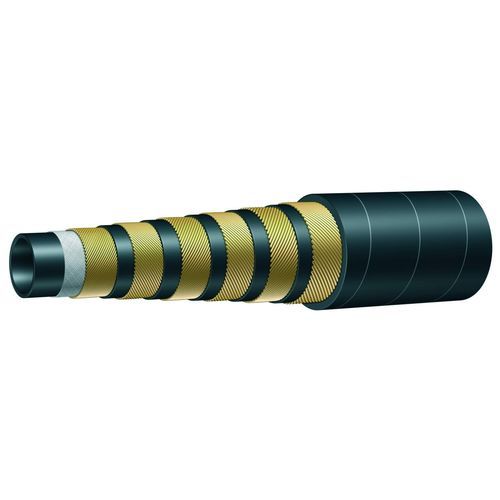

Hydraulic hose 6SP steelsynthetic rubberhigh-temperature
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- synthetic rubber, steel
- Applications
- high-temperature
- Other characteristics
- abrasion-resistant, oil-resistant
- Inner diameter
Max.: 32 mm
(1.26 in)Min.: 19.4 mm
(0.764 in)- Outer diameter
Max.: 51.2 mm
(2.016 in)Min.: 32.5 mm
(1.28 in)- Pressure
525 bar, 560 bar
(7,614.481 psi, 8,122.113 psi)- Temperature
Max.: 121 °C
(249.8 °F)Min.: -40 °C
(-40 °F)
Description
Tube - oil resistant syntetic rubber
Reinforcement - 4 high tensile steel spirals up to 32, DN 40 with 6 spirals
Covering - synthetic rubber with high temperature, ozone and abrasion resistance
