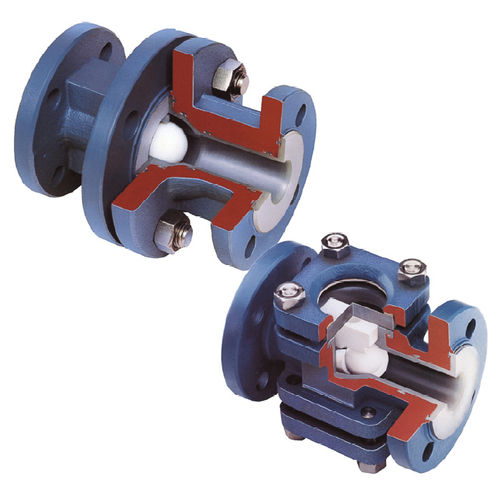

Ball check valve ARV2

flangePTFE-linedhigh-temperature

Borosilicate glass, in accordance with DIN 7080, is utilized to withstand high temperatures, mechanical stress and corrosion. For those applications requiring a higher flow capacity, Atomac check valve type ARV/SG should be considered. Universal Application The Atomac check valve can be installed either vertically or horizontally dependent upon application. Solid PTFE Ball The ball has the same properties as the FEP or PFA lining material. Full Port Design The full port design offers excellent flow characteristics to minimize pressure loss. Low Opening Pressure The minimum opening pressure required to unseat the ball in the vertical position is 0.07 bar (1 psl).
