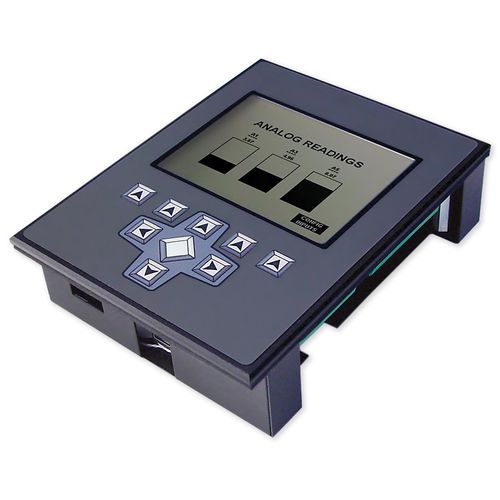

Operator interface with keyboard Rabbit® OP7200 series

panel-mountVGAARM Cortex

The OP7200 series of intelligent operator interfaces offers rugged I/O and Ethernet connectivity, along with optional A/D and touchscreen capabilities. The 10-Base-T Ethernet facilitates remote diagnostics, control and communication, including sending and receiving emails and alerts. Both models come equipped with a ¼ VGA display with a 9-key keypad and programmable on/off white LED backlight. The OP7200 series also provides easy-to-use menu building software and offer a programmable audible alarm for prompt notification and keypad/display feedback. Functionality of the OP7200 can be expanded using the optional RabbitNet™ expansion cards. RabbitNet expansion cards can be tailored to a large variety of demanding applications. The compact OP7200 eDisplay is an intelligent operator interface ideal for data acquisition and stand-alone systems such as factory floor controls. Features RabbitNet Expansion capability 1/4 VGA display (320 x 240 pixels) 24-27 industrialized digital I/O 10Base-T Ethernet with RJ-45 4 CMOS-compatible serial ports Supports English and foreign language fonts Graphic and bitmap images Optional 8 A/D inputs 4096 × 4096 analog touch screen Meets NEMA 4 water resistance standards for harsh environments when front-panel mounted
