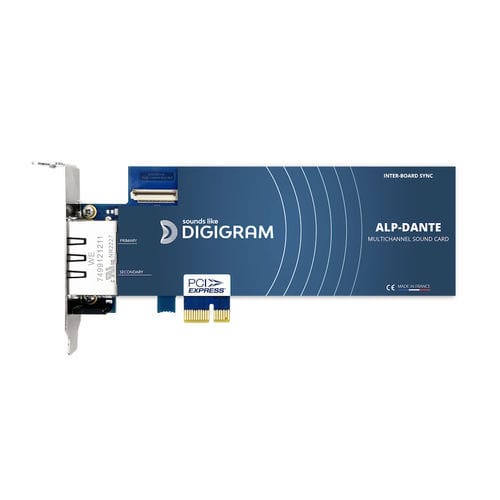

PCI Express sound card ALP-DANTE

low-profile

Redefine ‘versatility’ with the PCIe ALP-DANTE audio interface: its low-profile form-factor design matches most PCs and servers to address many applications. Its fanless design reduces consumption and is an asset for durability and sustainability. The card’s connectivity, combined with 64 channels of playback and 64 recording channels to/from a Dante network, opens new possibilities to reach beyond usual applications. ALP-DANTE operates under Windows or Linux environments to address various applications. Built on the same reliable and stable architecture as all ALP cards, ALP-DANTE is the perfect match for mission-critical applications where audio is key: its versatility works wonders in broadcast, public safety, medical, transportation, or countless industry markets. Drivers for Windows and Linux 64 playback channels 64 recording channels Switching ports mode Redundant ports mode Benefits Compatibility with AES67 & SMPTE ST2110-30 4 Eth ports for versatile Dante network connectivity Management via Dante controller and Dante device manager Specifications Format Form Factor Low profile PCIe Full-height PCIe (with the provided additional full-height bracket) Dimensions L: 168 mm x H: 69 mm x l: 20 mm L: 6.6 inch; H: 2.7 inch; l: 0.8 inch L: 168 mm x H: 99 mm x l: 20 mm L: 6.6 inch; H: 3.9 inch; l: 0.8 inch Control panel Digigram ALP-X ASIO Settings (Windows) Asio Control Panel: up to 8 ALP-X cards Select I/Os used through Asio (others can be used through Wasapi) Digigram ALP-X Manager (Windows) Asio Control Panel: up to 8 ALP-X cards One unified control panel for the whole ALP-X range Manages up to 8 ALP-X cards Vu-meters, clock frequency Firmware update
