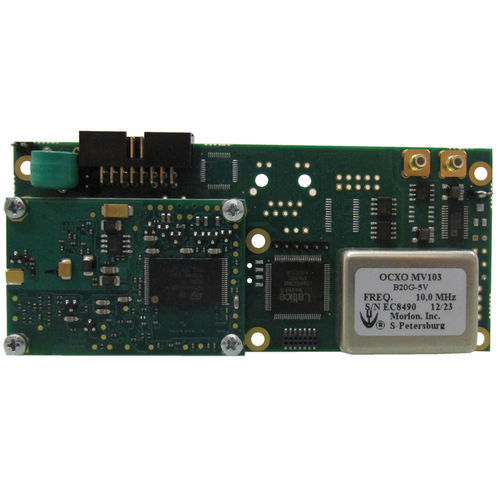

MICROREF-ZL is the smallest Time & Frequency reference generator available today on the market. It is designed for OEM Customers where high integration at low cost is required.
MICROREF-ZL is supplied without rack in order to permit to insert the card in already developed equipments where synchronization option is required. The 127 x 55 mm mechanical format let easily insert this board on Eurocard slots as well as on 19”/1U racks. The board has many interface like RS232 with customizable commands, 10/100 Ethernet with SNMPv2 protocol and a web-browser or custom GUI integration.
1PPS TTL output with 50 ohms impedance,
Internal OCXO having +/- 1E-10 aging day in holdover condition,
4 independent TTL signl output that can be used as telesignaling of board status,
RS232 serial connection,
Ethernet 10/100 interface with TCP/IP protocol,
Power Supply from 8 VDC to 30 VDC,
55 x 127 x 30 mm size mechanical format,
Management software developed for Windows OS.
