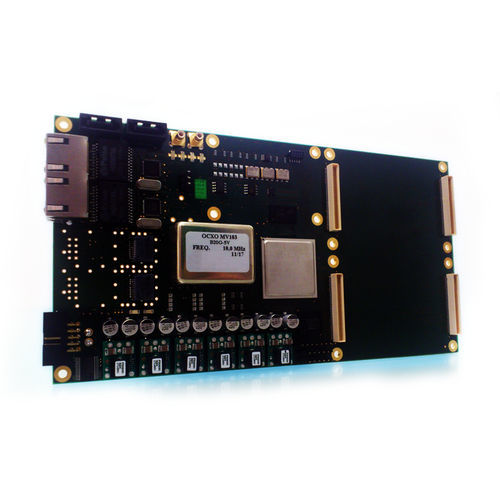

FPGA DI-6X

DI-6X is a very flexible XILINX based platform for a wide range of applications. The Ultimate XILINX VirtexVI with different high speed connections allows DI-6X to be the right platform for the next generation of LTE terminal. The possibility to use 2 different daughterboards with an innovative MP-MB bus (typically one Tx and one Rx) over a wide range of frequencies (from 500 Mhz to 4GHz) makes it easier to implement standards for Telecom, Wireless or Satellite applications. A wide variety of daughterboards are available for different applications (see details below). A softcore Xilinx based microprocessor implementing Linux OS allow for easy management of the components connected to the MP-MB bus. A very high stable reference frequency using an OCXO and an integrated GPS receiver allows the DI-6X to be time referenced for every kind of processing requiring accurately timestamped signals. The DI-6X is also equipped by two GigaEthernet connections and two RTX FSP 2.5 for every kind of remote link. A double SATA link is also available for a easy connections between multiple DI-6Xs allowing for daisy-chaining of data. An extremely compact unit (19’’/1U mechanical chassis) the DI-6X can also be equipped with a dual Power Supply that, with the multi-reference input, makes the equipment ultra-reliable. Furthermore, the unit can be easily managed remotely with SNMP or a user-friendly GUI-on-the-web interface. Internal high stability OCXO aging rate of ± 1*10 -10 / day, New generation DPLL fast lock, 2x 1Giga Ethernet synchronous, 2x RTX FSP 2.5G, 2x SATA Serial Fast Link, 1x 1PPS TTL Output, 2x PSU (AC or DC), 2x MP-Mezzanine BUS LVDS/TTL.
