Radio control XPAD1

with buttonsindustrialfor UAVs

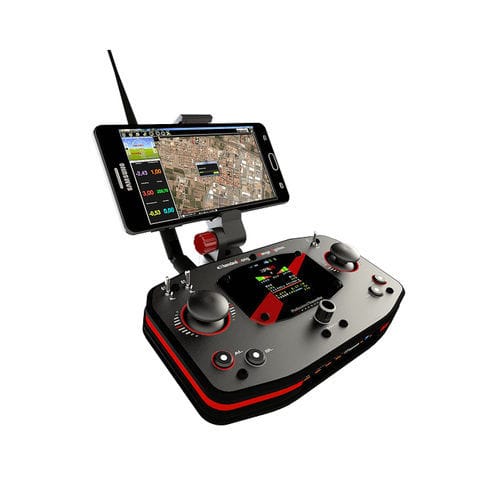

The XPAD1 is a small but no less powerful Radio Control (RC) + Telemetry transmitter, from 313 to 950Mhz, 500mW, with mini joysticks and a color IPS display. Portable and long range to 100km. The MiniJoystiks are prepared to control drones or planes with progressive throttle. Allows the transfer of control of the UAV between pilots. Mavlink or transparent telemetry. Prepared for applications where small size and good radio range are important. A powerful 6th Generation radio modem allows a maximum range of 100km. As a radio control unit, it is designed for working ranges of 25km, depending on the antennas it can reach much more. Optionally, LTE 4G can be added to have control in areas where the antennas are not directly visible or where there are many or large obstacles (NLOS). In preparation, please consult. • Professional remote control for radio control (RC). • Auxiliary of the GCS (Ground control Stations) for the camera operator. • 2nd station to land or take off from a base station. • Transmitter for 2nd pilot sharing base station GCSD4 or GCSD5. • Pilot training. • Learning XLRS systems with Aerosim simulator.
