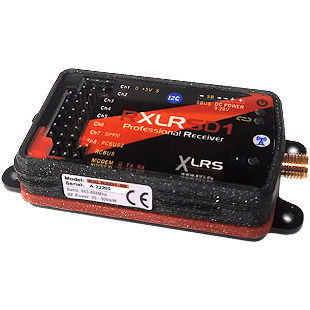

Radio receiver RXLRSD1

industrialfor remote controlfor UAVs

Professional Radio Control and Telemetry Receiver eady to work up 25Km or more (LOS) *Range RC and telemetry max.100Km. Prepared for any type of vehicles UAV, VTOL, Dron, UAS, UGV, AGV, UV, Car, Boat, Robots and more… Compatibility Prepared for use in XLRSD1 series products. Remote Controllers | Ground Controls The RXLRSD1 receiver uses the 5th generation XLRS radio frequency module (WMX5H), it is capable of reaching 100Km (LOS) with the right combination of antennas. Two frequency bands: 313Mhz to 470Mhz and 863Mhz to 950Mhz to choose. Sensitivity: -110dBm. Bandwidth (Radio Modem): 100Kb. Power RF: 500mW, by default. Optionally it can be increased up to 1W. Excellent frequency stability: +-1ppm. The frequency, power, sensitivity and modulation are adjustable, normally they are blocked for safety and regulations. Normative: They comply with CE regulations for Europe, FCC for America and ETA for India. The receiver supports operation in various RF bands to adapt to country regulations. Encryption: 128-bit AES to prevent transmitter spoofing or unauthorized drone takeover. FHSS Frequency Hopping: Frequency hopping spread spectrum allows multiple channels to interfere and the system remains immune. FHSS synchronization recovery: <300ms. The pseudorandom hopping sequence is encrypted with a 10-digit user code. Redundancy: Prepared to connect an additional RXLRSD1 receiver and work in redundant mode in the same frequency band.
