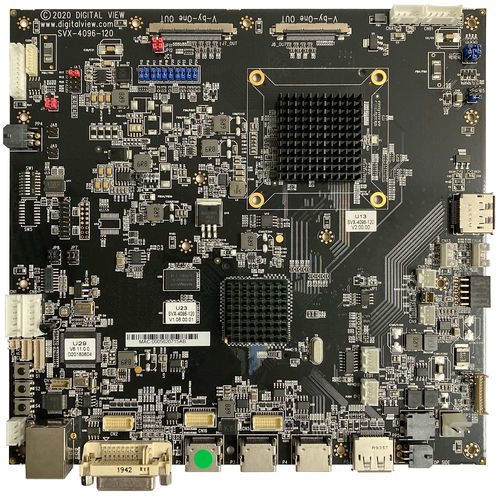

LCD controller card SVX-4096-120

RS-232EthernetHDMI

• LCD support: 4K, 60Hz & 120Hz, 10-Bit • Panel connectivity: V-by-One • Inputs: - HDMI 2.0 - HDMI 1.4 - Displayport 1.2 - DVI-I • Displayport daisy-chain • Programmable hot-keys • Picture-in-Picture (PiP), Picture-by-Picture • Ethernet & RS-232 control The SVX-4096-120 is an advanced LCD controller for video signals up to 4096x2160 and LCD panel resolutions up to 4096x2160 (120Hz) with 8 & 16 lane V-by-One connectivity. Input signal formats include HDMI 2.0/1.4, DVI Dual-link and Displayport 1.2 with board mounted industry standard input connectors for easy enclosure design. The very extensive feature set ensures suitability for many display applications. The SVX-4096-120 is supported by a wide selection of panel connection cables and other accessories together with system development documentation including 3D drawings.
