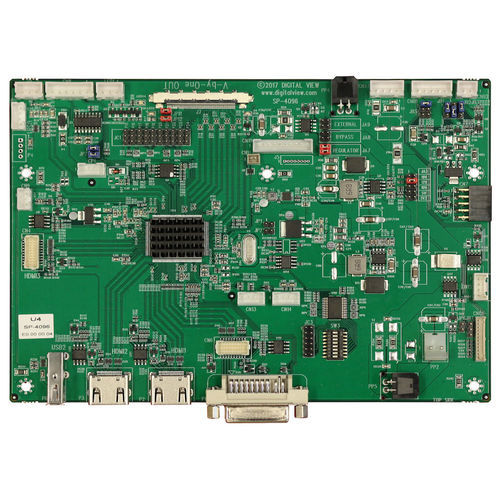

LCD controller card SP-4096

RS-232HDMI

• LCD support: 4096x2160, 10-Bit • Panel connectivity: V-by-One • Inputs: - HDMI: 2 x connector, 1 x header - DVI: 1 x connector, 1 x header - Support for interlace video add-on • Integrated MP4 media player / failover • Separate power in for high power panels • RS-232 control, IR remote control The SP-4096 LCD controller is an interface board converting video signals such as HDMI and DVI to the signals required by compatible LCD panels such as from AUO, BOE, Innolux, LG Display, Samsung, Sharp and others. It also provides media playback, image management functions as well as monitoring and control features for the finished monitor or display system. The SVX-4096 is supported by a wide selection of panel connection cables and other accessories together with system development documentation, 3D drawings and engineering support for customization. The SP-4096 is the 4K version of the 'SP' LCD controller family, other models include the HSP-4096 for harsher environments and the SP-1920 for Full-HD resolution panels and input signal. The feature set ensures suitability for many commercial display applications such as digital signage and corporate AV. A full summary of Digital View LCD controllers can be seen here LCD Controller Summary.
