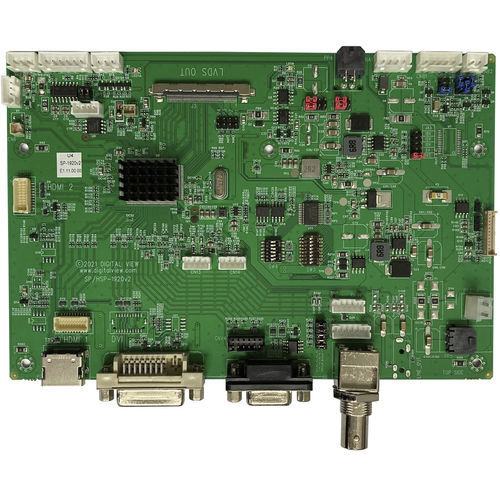

LCD controller card HSP-1920v2

RS-232LVDSHDMI

• LCD support: Up to 1920x1200, 10 bit • Panel connectivity: LVDS • Inputs: - 2 x HDMI: 1 x connector, 2 x header - 1 x DVI: 1 x connector - 1 x VGA: 1 x connector, 1 x header - 1 x Composite: 1 x connector, 1 x header - 1 x Component: 1 x header • Integrated H.264, H.265 media playback • Separate power in for high power panels The HSP-1920v2 LCD controller, a new version of the HSP-1920, is an interface board converting video signals such as HDMI, DVI, VGA and Composite to the signals required by compatible LCD panels such as from AUO, BOE, Innolux, LG Display, Samsung, Sharp and others. It also provides monitoring and control features for the finished monitor or display system. The HSP-1920v2 is supported by a wide selection of panel connection cables and other accessories together with system development documentation, 3D drawings and engineering support for customization. The HSP-1920v2 has an equivalent model for less harsh environments, the SP-1920, part number 4178100xx-3. The feature set of the HSP-1920v2 ensures suitability for many commercial display applications. A full summary of Digital View LCD controllers can be seen here LCD Controller Summary.
