LCD controller card HE-1400v2serialRS-232LVDS
Add to favorites
Compare this product
Characteristics
- Function
- LCD
- Bus
- serial, RS-232, LVDS, RGB, VGA, TTL
Description
• LCD support: Up to 1440x900 panel resolution, 8-Bit
• Panel connectivity: TTL, LVDS
• Inputs: DVI & ARGB (VGA)
• Conformal coating
• Extended operating temperature range
• RS-232 serial command & control

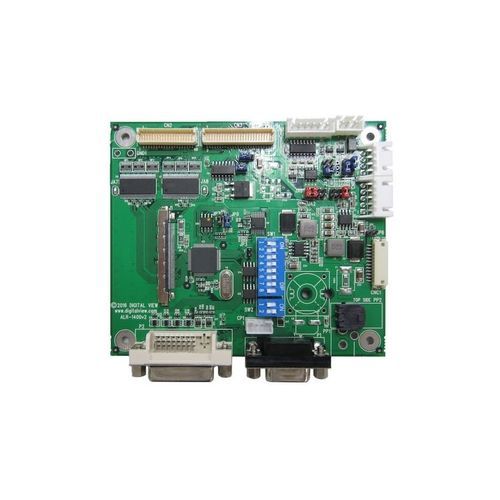

The Digital View HE-1400v2 interface controller, it is a version of the ALR-1400v2 enhanced for harsher environments; it is designed for commercial & industrial monitor development converting DVI or ARGB(VGA) video to TTL or LVDS signals for LCD panel connection. Supported panels include: AUO, BOE, Innolux, KOE, LG Display, Mitsubishi, NLT, Samsung, Sharp, Tianma and others.
