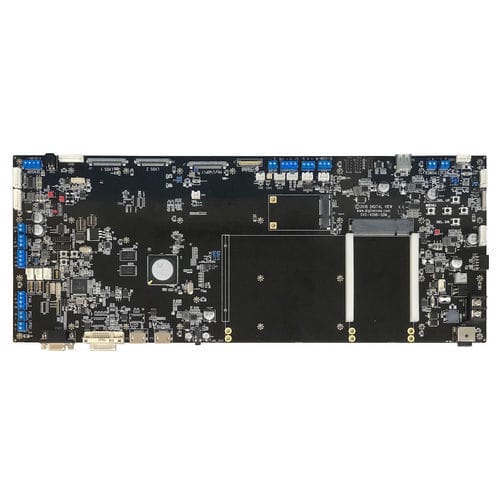

LCD controller card SVX-4096-SDM

PCIeRS-232USB

• LCD support: 4K, 60Hz (120Hz with IE-2000), 10-Bit • Panel connectivity: V-by-One, LVDS, eDP • Intel® SDM Small & Large interface • PCIe expansion connector • Video inputs: - HDMI 2.0 - HDMI 1.4 - DVI-I • RS-232 control • Internal USB & touch panel support • Sensor & fan connectivity support The SVX-4096-SDM provides both an Intel® SDM interface and advanced LCD controller for video signals up to 4096x2160 and LCD panel resolutions up to 4096x2160 (60Hz & 120Hz using IE-2000). Intel® SDM Small and Large slot, HDMI 2.0/1.4 and DVI Dual-link inputs with board mounted industry standard input connectors for easy enclosure design. The extensive feature set ensures suitability for many display applications such as digital signage and corporate AV. The SVX-4096-SDM is supported by a wide selection of panel connection cables and other accessories together with system development documentation.
