Compact data logger DatPRO

voltagecurrentpower

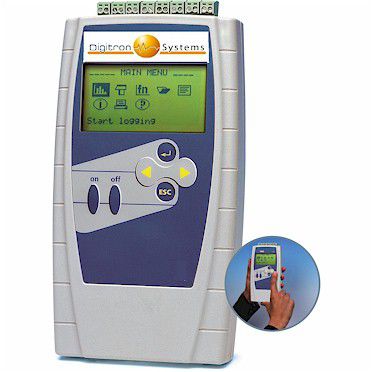

The multi-channel data logger DatPRO is a portable device that can run either on batteries, with power supply: provides a 16-bit resolution and 8 inputs configurabilie completely. It also features a large graphic display with functions of analysis can display measurements of voltage signals, current and temperature, a compact, professional and can be used in "stand alone" by providing a low cost solution for all professional requirements for countless applications where it is needed to accurately measure and record parameters of different types. Il kit DatPRO datalogger: • DatLab programming software / unloading and analysis of data • Alimentore AC / DC • USB interface cable • Manual • Carrying case for instrument and accessories • Report calibration traceable to NIST standard Features DatPRO • Operating in "stand alone" samples and records the measurements without the need for connection to PC • DatPRO Features • Operating in "stand alone" samples and records the measurements without the need for connection to PC • Works with rechargeable batteries 7.2-V • Network Adapter from 9 .. 12Vdc • High sampling rates up to 4000 samples per second (only on channel 1 in the frequency measurement) • Large memory 512KB RAM • Large graphic display showing: the measured data, the graphic, the tabular format • The set up is programmable keyboard • Interface USB High Speed ?? • Management sampling sessions (up to 100 sessions) • Ability to configure measurement scales and units engineering (such as Bar, PPM, etc.) • clock and calendar, tracking the hours and days of measured data
