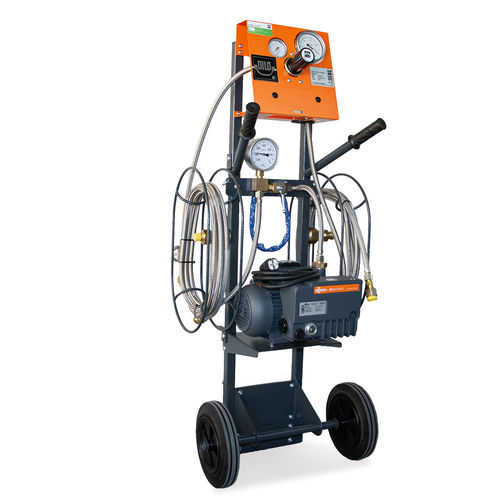

SF6 gas evacuating and refilling device 3-001-4-R002 series
cylinder cartmobilefor distribution switchgear

SF6 gas evacuating and refilling device
SF6 gas evacuating and refilling device
Add to favorites
Compare this product


Characteristics

Type
mobile, cylinder cart, SF6
Applications
for distribution switchgear
Other characteristics
manual

Description

Filling of gas : 0 - 10 bar Evacuation of air : < 1 mbar DILO couplings : DN8/DN20 Operating voltage : 220 - 240 V Frequency : 50 - 60 Hz Operation : manual Standard version • vacuum pump for evacuation of air (16 m³/h [at 50 Hz]; 19m³/h [at 60 Hz]), final vacuum 1 mbar • pressure reducer for SF6 • SF6 cylinder connection W 21.8 x 1/14" • gauge 0 to -1,200 mbar • primary gauge NG63, class 1.6, 0 - 60 bar • secondary gauge NG100, class 1.0, 0 - 10 bar • indication units in bar, ps, kPa • ball valve DN8 with hand wheel • 6 m long wire-braided hose DN8 • DILO couplings DN8 and DN20 • 3 m long electrical connecting cable • solid tyre wheels • paint: orange For evacuation of air and safe refilling of SF6 into gas compartments by overpressure This device covers two important functions: The integrated vacuum pump allows the evacuation of air down to < 1 mbar so that no air/gas mixture is produced during the subsequent filling process. The use of gastight and selfclosing DILO couplings guarantees emission-free gas handling. The weight of the gas to be refilled can be conveniently registered (with the 3-001-4-R022 / R122 version) by means of the integrated weighing scales. The weight is indicated on the illuminated display which switches off automatically if the scales are not used for a longer period of time. Thanks to the tare function, the gas can be precisely quantified. Advantages & functions • frame • hose reel • couplings can be exchanged without any gas loss • most common global cylinder connections available as accessories
