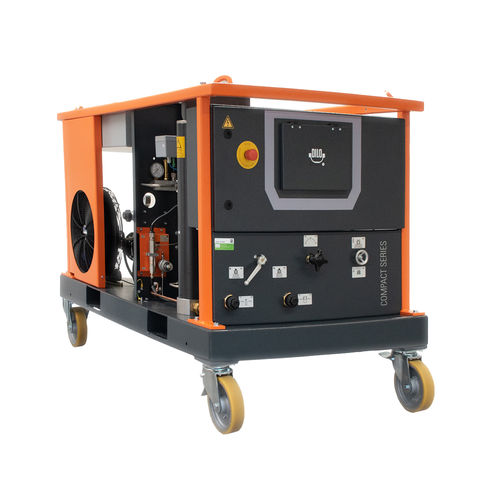

Compact SF6 gas service cart Compact Series

mobilefor gaseous and liquid SF6 storagefor SF6 gas recovery

Gas recovery : < 5 mbar Filling of gas : 0 - 10 bar Evacuation of air : < 1 mbar Maximum storage pressure : 50 bar Recommended gas quantity : < 300 kg Operation : semi-automatic DILO couplings : DN20 Standard version • B280R51 oil-free DILO compressor; delivery rate (6.5 m³/h ([at 50/60 Hz]) at medium suction pressure with SF6 • vacuum compressor for recovery of SF6 (4.8 m3/h [at 50 Hz]; 5.8 m³/h [at 60 Hz], final vacuum < 5 mbar) • vacuum pump for evacuation of air; delivery rate (configurable) • evaporator (max. flow rate 200 kg/h) • dry filter (water absorption capacity 175 g at a dew point of -36 °C) • particle filter 1 μm • operation and indication of important process parameters via 7" touch screen with protective cover • indication units in bar / mbar, kPa or psi / torr to be selected on the touch screen • fork lift slots • crane eyelets • fixing and steerable rollers (configurable) • 5 m long storage connecting hose DN8 with DILO coupling tongue part DN20 • most common global cylinder connections • digital weighing scales for SF6 cylinders, 0 - 120 kg with tare function, accuracy ± 0.02 % • wrenches for DILO couplings and filters • paint: anthracite-orange Starter series for medium-sized gas compartments The service carts of the Compact series for gaseous or liquid storage offer the best entry into professional gas handling. Equipped with the well-proven DILO components these service carts allow the recovery, filling and purification of SF6 gas as well as the evacuation of air and venting of medium-sized gas compartments.
