Evacuation of air : < 1 mbar
DILO couplings : DN20/DN40
Operating voltage : 380-460 V
Frequency : 50/60 Hz
Operation : automatic
Standard version
• solenoid valve DN50
• DILO couplings DN20 / DN40
• electric control
• fixing and steerable rollers
• crane eyelets
• stowage tray for tools and accessoriess
• wrenches for DILO couplings
• paint: orange

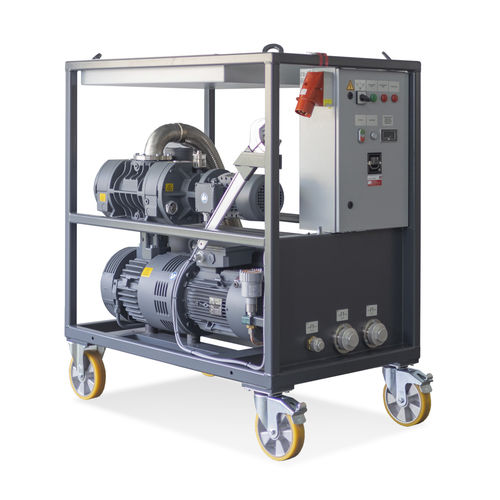

For evacuation of air or nitrogen
This series is very powerful and allows quick evacuation of large gas compartments. A vacuum pump combined with a Roots pump enables to obtain a final vacuum of 2x 10-2 mbar. Thus not only air but also moisture is removed from the circuit breakers. Therefore the subsequent filling process is prepared perfectly.
Three coupling connections (DN20 and 2 x DN40) allow the evacuation of two gas compartments at the same time without any manifold that means more efficiency and higher productivity during operation.
Advantages & functions
• protection of the vacuum pump against overpressure by a solenoid valve
• adapters for other nominal widths are available
