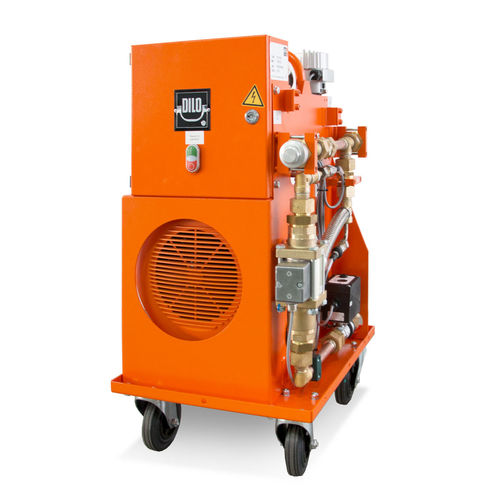

Gas pumping unit B131R13
with electric motorself-primingcentrifugal

Add to favorites

Compare this product

Go to the DILO Armaturen und Anlagen GmbH website for more information

Characteristics

Fluid: for gas
Operation: with electric motor
Priming: self-priming
Technology: centrifugal
Mobility: mobile
Domain: industrial
Applications: suction
Flow: 35 m³/h
(1,236.01334 ft³/h)
Pressure: 1 mbar
(0.015 psi)
Length: 550 mm
(22 in)
Width: 430 mm
(16.93 in)
Height: 800 mm
(31.5 in)
Weight: 80 kg
(176.37 lb)

Description

Standard version • DILO couplings DN20 • Vacuum indication (0 - 400 mbar) • Fixing and steerable rollers • Different wrenches • 3 m long electrical connecting cable • Paint: orange (RAL 2004) • Operating manual Description The mobile suction pump allows upgrading old SF6 maintenance devices. Thus it is possible to recover the SF6 gas from the gas compartment to a final vacuum of 1 mbar by connecting in series the mobile suction pump. Advantages & functions • Separate electric control • Self-closing couplings for emission-free gas handling • Digital vacuum indication (0 - 400 mbar) • Steerable and fixing rollers for comfortable handling • Different wrenches are available as accessories
