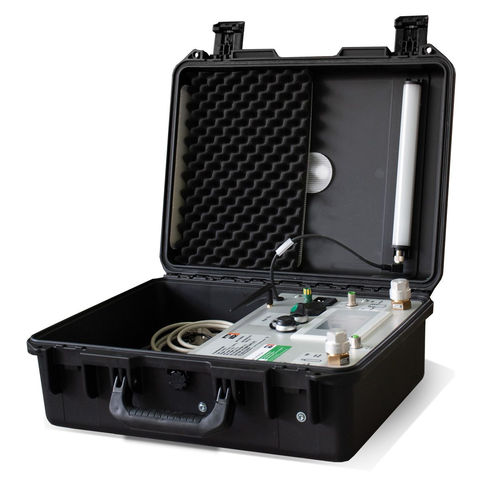

SF6 gas refilling device B190R11V1

mobilefor distribution switchgearremote

Special features Filling of gas : 0 - 10 bar DILO couplings : DN8 Operating voltage : 220 - 240 V Frequency : 50 - 60 Hz Operating voltage : 110 - 120 V Frequency : 60 Hz Operation : manual Standard version • DILO couplings DN8 for storage cylinders and gas compartments • Gas compartment temperature recording: 0 to 50 °C • Weight recording via easy connection for WE100 scales (e.g. K091R67, 3-001-R021) • 2 operating manuals in German or English Description For the safe filling and refilling of porcelain insulators in outdoor switchgear Finest hairline cracks may occur on porcelain insulators for circuit breakers or other SF6 insulated electrical equipment such as measuring or current transformers during transportation or as a result of material stress. Filling the gas compartment with SF6 may lead to dangerous bursting of the insulator. Thanks to the “CommGuard Web“ filling unit it is now possible, for the very first time, to fill porcelain insulators in a controlled and safe way from a distance of up to 100 m. This unit enables the operator to control and monitor the fully automated filling process using a smartphone, tablet or laptop from outside the danger zone. The device is equipped with an external temperature sensor and fills the gas compartment to a constant gas density. The temperature-compensated filling pressure is thus achieved with a precision of ± 50 mbar. Furthermore, there is the option of connecting DILO weighing scales to the unit and the gas quantity filled in can be precisely recorded (e.g. K091R67, 3-001-R021 ± 20 g).
