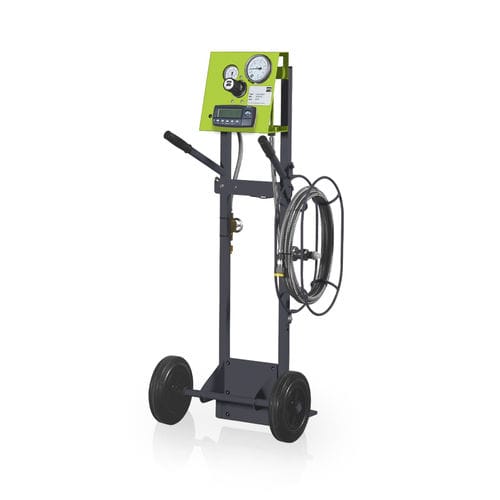

Mobile gas refilling device C4-3-001-R021

with electronic weighing scale

• pressure reducer for C4-FN gas mixtures • cylinder connection W 21.8 × 1/14" • primary gauge NG63, class 1.6, 0 - 60 bar • secondary gauge NG100, class 1.0, 0 - 16 bar • indication units in bar, ps, kPa • ball valveDN8 with hand wheel • 6 m long wire-braided hose DN8 • DILO couplings DN8 and DN20 • digital weighing scales for cylinders, 0 - 120 kg with tare function, accuracy ‡ 0.02 % • solid tyre wheels • paint: green-anthracite For safe refilling of gaseous stored C4-FN gas mixtures by overpressure Refilling device as cylinder cart for comfortable on-board carrying of a gas cylinder. The primary gauge of the pressure reducer displays the cylinder pressure in bar, psi and kPa. The secondary gauge indicates the desired filling pressure to be set easily by means of the handle. The cylinder pressure can be reduced to the desired filling pressure by the integrated pressure reducer. The use of gastight and selfclosing DILO couplings guarantees emission-free gas handling during the refilling process. The weight of the gas to be refilled can be conveniently registered by means of the integrated weighing scales. The weight is indicated on the illuminated display which switches off automatically if the scales are not used for a longer period of time. Thanks to the tare function, the gas can be precisely quantified. Advantages & functions • framel • hose reeli • integrated serial interface for data exchange and monitoring • couplings can be exchanged without any gas loss • digital display with internal battery (IP65) • weight indication reversible from kg to Ibs
