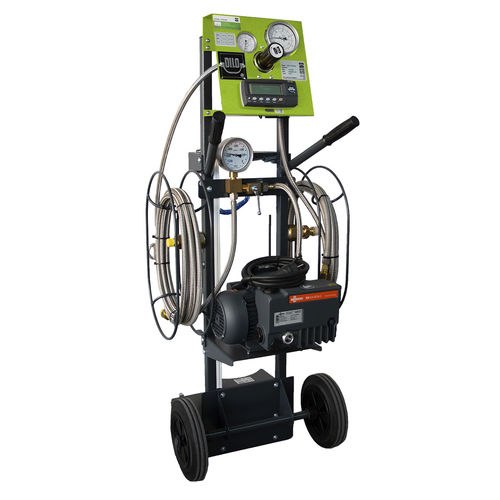

Cylinder cart gas evacuating and refilling device CA-3-001-4-R002A

mobile

• vacuum pump for evacuation of air (16 m%/h [at 50 Hz); 19m%/h [at 60 Hz)), final vacuum 1 mbar • pressure reducer for CA • CA cylinder connection G 3/4 & G 5/8 • gauge 0 to -1,200 mbar • primary gauge NG63, class 1.6, 0 - 315 bar • secondary gauge NG100, class 1.0, 0 - 16 bar • indication units in bar, ps, kPa • ball valve DN8 with hand wheel • 6 m long wire-braided hose DN8 • DILO CA-couplings DN8 and DN20 M24x1,5 - M50x2 • 3 m long electrical connecting cable • solid tyre wheels 0 250 mm • paint: green-anthracite For evacuation of air and safe refilling of CA into gas compartments by overpressure This device covers two important functions: The integrated vacuum pump allows the evacuation of air down to < 1 mbar so that no air/gas mixture is produced during the subsequent filling process. The use of gastight and selfclosing DILO CA-couplings guarantees emission-free gas handling. Advantages & functions • frame • hose reeli • couplings can be exchanged without any gas loss
