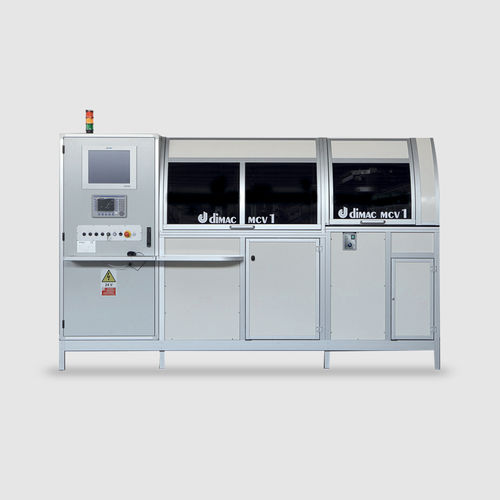

Optical sorting machine MCV1

automaticcontinuous

• High productivity index and continuous rotary table • Dimac best seller • Suitable for a wide range of parts • Dimensional controls and inspection of attributes by high resolution cameras Mechanical gaging and NDT controls for cracks and heat treatment available HIGH SPEED CRACKS CONTROL with adjustable eddy current station icone-05ST CONTROL Straightness control for the parts after the heat treatment – Inspection of concentricity between head/shank – Thread quality inspection all around 360º icone_catalogo-02SCRAP CONTROL Detection of the correct ejection of the NOK parts – Sorting statistics with the listing of the defective parts and the related images PARTS THAT CAN BE INSPECTED Screws, fittings, studs, ballpins, bushes, threaded inserts, valve retainers,special nuts and special components produced by turning or cold forming process MODULARITY Multi-purpose feeding system for parts hung by the head and headless parts Flexible quick-change feeding units dedicated to special parts All around 360º dimensional control and recess drives inspection by interchangeable bits and mechanical gages Crack detection and heat treatment detection by eddy current modules WORKING RANGE Shank diameter from 3 mm to 12 mm Shank length from 6 mm a 90 mm REPEATABILITY Up to +/- 0,005 mm
