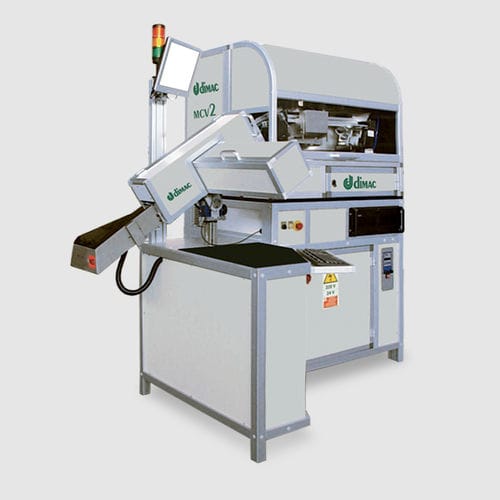

Optical sorting machine MCV2

automaticglass

• Slant tilting glass “V” track • Single or double side profile camera for superprecise dimensional inspection of parts with cylindrical simmetry • Very fast changeover without any tooling to be replaced icone-04HT CONTROL Heat treatment inspection by eddy current module to sort parts by classes of hardness icone-06LINEAR FACTOR Linearity software inspection tool to detect any burr and damage along the part profile icone-07HS REVERSE MODE Dimensional inspection independent from the orientation of a part when sliding down along the “V” track. High efficiency of the sorting process PARTS THAT CAN BE INSPECTED Screws, plugs, pins, studs, ball-studs, special mechanical components with cylindrical simmetry having a ratio 1:2 between max. NON-STOP-FEED WORKING RANGE Shank diameter from 3 mm to 12 mm Shank length from 15 mm to 60 mm Wider range upon request Heat treatment controls up to 200 pieces/minute
