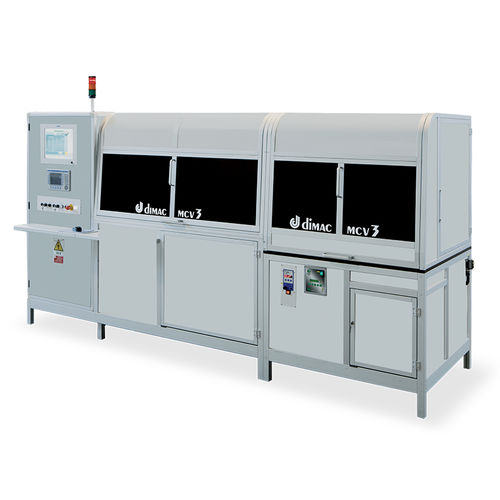

Optical sorting machine MCV3

automatic

• Oversize, indexed rotary table for medium and large size parts • NDT inspection stations for detection of heat treatment presence and cracks • Optical dimensional inspection over 360º for thread damages and long parts straightness icone-04HT CONTROL Heat treatment inspection by eddy current module to sort parts by classes of hardness icone-05ST CONTROL Straightness control for the parts after heat treatment – Inspection of concentricity between head/shank – Thread quality inspection all around 360º icone_catalogo-02SCRAP CONTROL Detection of the correct ejection of the NOK parts – Sorting statistics with the listing of the defective parts and the related images PARTS THAT CAN BE INSPECTED High-tensile screws and bolts, ballpins, plugs, studs, shafts, bushes and special nuts, special turned /cold formed parts WORKING RANGE Shank diameter from 8 mm to 20 mm Shank length from 20 mm a 220 mm Extra range on request REPEATABILITY Up to +/- 0,01 mm
