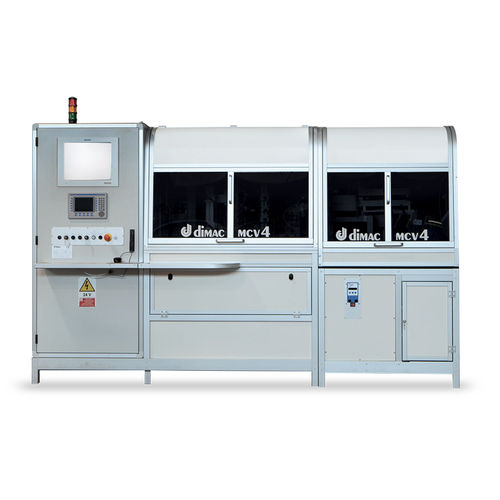

Optical sorting machine MCV4

automatic

• High efficiency index rotary table with double rate mode feeding concept • Designed for the inspection of 2 parts simultaneously • 360º all around optical controls in combination with eddy current modules for crack or heat treatment detection icone_catalogo-03ADAPTIVE SETUP Optimization of working parameters based on the choice of the inspection stations icone-01SUPER GEWINDE High precision inspection of the thread profile over 360º to detect very small marks or localized defects icone_catalogo-04DOUBLE RATE MODE Simultaneous inspection of two parts with high speed feeding/positioning and sorting of the defective parts into two classes PARTS THAT CAN BE INSPECTED Screws, fittings, studs, ballpins, bushes, shafts, threaded inserts, valve retainers,special nuts and special components produced by turning or cold forming process MODULARITY One or two optional stations for high speed inspection of cracks, mechanical measurement of drive recesses, go-no-go gages, heat treatment detection, 360º rotation TELESERVICE – OFFLINE PROGRAMMING Remote control via web – data management and offline programming with full support of Dimac service WORKING RANGE Shank diameter from 6 mm to 16 mm Shank length from 15 mm to 120 mm REPEATABILITY Up to +/- 0,01 mm
