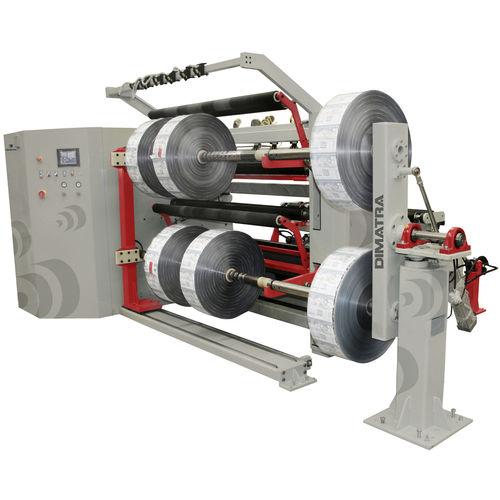

Duplex turret slitter-rewinder Duplex

for plastic filmsautomatic

Duplex Slitter Rewinder Description Machine designed to slit and rewind plastic film and its lamination. Built with differential friction shafts in the rewinding section. Taper tension programmed at the HMI. Designed to stop automatically at the defined diameter or length. This machine runs with : cellophane, PET, PE, PVC, BOPP, CPP, BOPA, PP and laminated products. Process - Shaftless unwinder with 3” to 6” chucks. - Edge alignment system. - Anti static bars. - Razor slitting system. - 3” differential friction shafts for rewinding. - F-type holder for easy unloading. Optional Shear slitting system, edge extractor, core positioning with manual or semi-automatic laser guided system, rolls ejection system , differential rings with different diameters and widths. Technical Specifications - Unwinder diameter: 1,000 mm (39”). - Widths: 1,000 mm (39”) - 1,300 mm (51”) - 1,600 mm (62”). - Rewinder diameter: 800 mm (31”). - Speed: 800 m/min (2,624.67 ft/min). - Minimum slitter width: 50 mm (2”). - Unwinding weigh capacity: 1,000 kg (2,204 lb). Services - Training. - Installation. - Spare parts sales. - Preventive maintenance. - Troubleshooting hotline.
