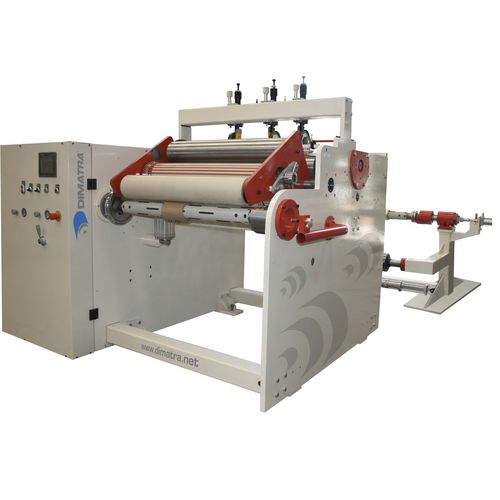

Plastic film slitter-rewinder automatic
Add to favorites
Compare this product
Characteristics
- Transformed product
- for plastic films
- Options
- automatic
- Working width
700 mm
(28 in)- Speed
5,833 mm/s
Description
Description
Slitter rewinder for big rolls that allows working with a vast variety of flexible and semi rigid film such as PET poly layer and mono layer.
Process
Central unwinder with brake
Edge guiding system
Automatic tension control system
Shear longitudinal slitting system
Central air shaft rewinding system
Rider roll
Manual ejection of finished rolls
Control panel with PLC integrated to the machine
Anti static bars
Optional
Other diameter air shafts (6")
Differential shaft for rewinding
Technical Characteristics
Unwinder maximum diameter: 1,000mm(39")
Unwinder core ID diameter: 76mm(3")
Unwinder maximum width: 700mm(28")
Rewinder maximum diameter: 600mm (24")
Rewinder shaft diameter: 76mm (3")
Speed: 350m/min (1,150ft/min)
Unwinder maximum weight: 770kg (1,700lb)
Rewinder maximum weight: 220kg (485lb)
Minimum thickness: 0.010"
Maximum thickness: 0.040"
