Paper slitter-rewinder

automatic

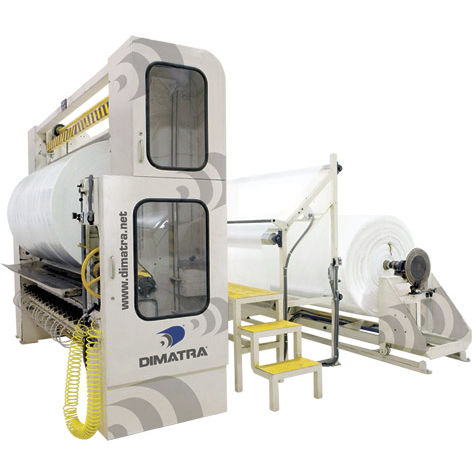

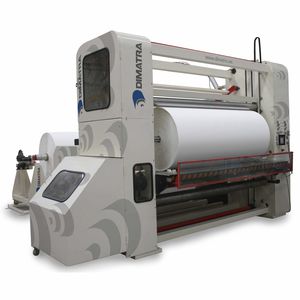

Slitter Rewinder for Medium Rolls Description Machine designed to cut and rewind materials such as nonwoven and paper. Process - Unwinder with pneumatically retractile chucks, brake system and air shaft. - Shear or crush cutting system. - Peripheral rewinding system with two support rolls and a riding roll. Air shaft for finished rolls. - Adjustable system for different speed between rolls. Optional Shaftless unwinder, automatic tension controlling system, guiding system, trim edge extractor system and inspection table. Technical Specifications - Maximum diameter in unwinding section: 1,200 mm and 1,500 mm. - Standard widths: 1,500 mm, 2,500 mm and 4,500 mm. - Maximum speed: 200 m/min. - Minimal slitting width: 25 mm. - Maximum finished rolls diameter: 1,200 mm and 1,500 mm. Services - Training. - Installation. - Spare parts sales. - Preventive maintenance. - Troubleshooting hotline.
